SRQ Fab Radius Arm Mounts (RAM) For Land Cruiser 80 Series

SRQ Fab Radius Arm Mounts (RAM) For Land Cruiser 80 Series

$149.59 - $149.59
$149.59
$149.59
$149.59 - $149.59
$149.59

Overview:

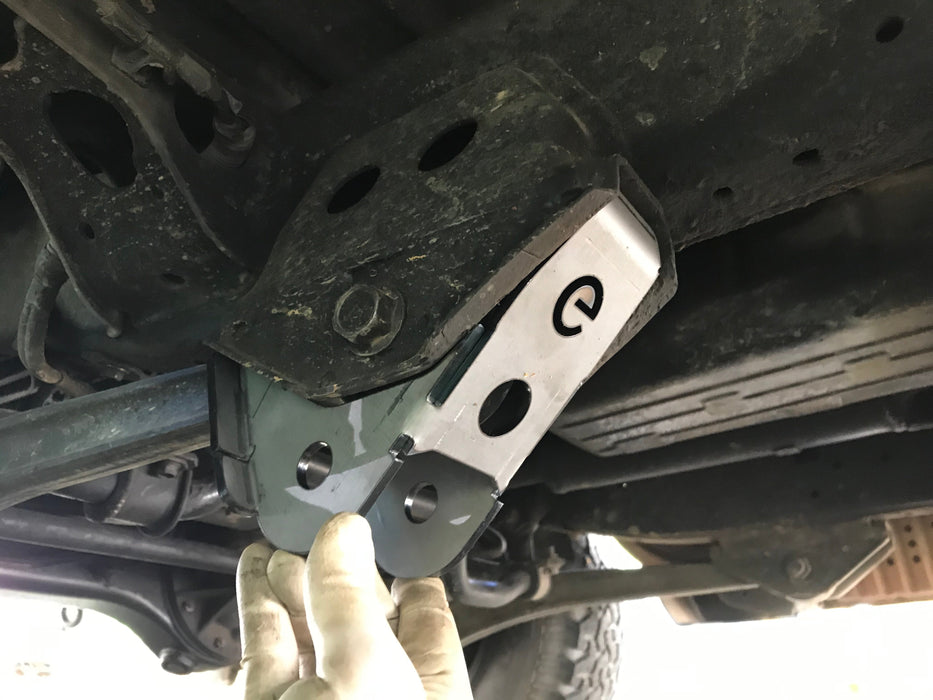

Radius Arm Mounts for 80 Series Land Cruiser, designed to relocate the frame-side radius arm pivot down 50mm and forward 25mm. Optimized for low-lift builds seeking full up-travel, caster correction, and improved tire clearance without compromising suspension geometry.
– Lowers rear radius arm pivot by 50mm to restore factory caster and anti-dive on 2" lifts
– Moves pivot 25mm forward to increase firewall clearance for 37–38" tires
– Weld-on design integrates reinforcement rib into factory mount for strength
– Maintains stock hole access for reversibility after installation
– Compact profile minimizes hang-up risk on off-road obstacles
– Adds approximately 3.45° of caster correction

Specifications:
– Material: Steel
– Drop: 50mm vertical, 25mm forward offset
– Construction: Weld-on with integrated reinforcement plane
– Finish: Raw steel

Fitment:
1990–1997 Toyota Land Cruiser 80 Series

What’s Included:
– (2) Radius arm relocation mounts (driver and passenger side)
– (1) eimkeith logo decal

Notes:
Welding required. Designed for use with approximately 2" of lift. Provides improved tire-to-firewall clearance at full compression. Factory bushings recommended as alignment spacers during installation. Some outer ears may require light adjustment for proper fitment. Fender trimming may be necessary with oversized tires.
