SRQ Fab Panhard Correction Kit (PCK)® For Land Cruiser 80 Series

Overview:
Panhard Correction Kit for 80 Series Land Cruiser, designed to restore proper panhard geometry across varying lift heights and load conditions. Offers multi-position mounting for precise axle alignment and optimal suspension performance.
– Accommodates variable ride heights from 2" to 5" lift with adjustable bracket positions
– Corrects panhard bar angle to maintain centered rear axle and reduce lateral movement
– Raises rear roll center for improved handling on 2–4" lifts
– Eliminates need for adjustable panhard bar when used with specified bracket positions
– Engineered for compatibility with both flat- and V-top axle mounts

Specifications:

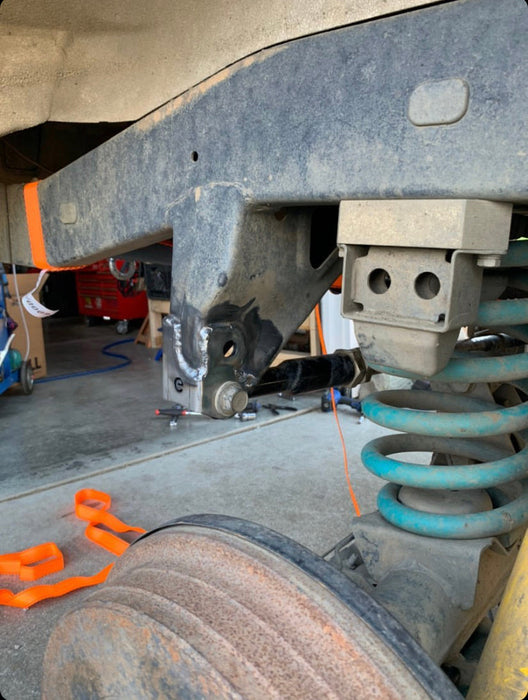

– Frame-side bracket: Drop-style, includes new mounting hole

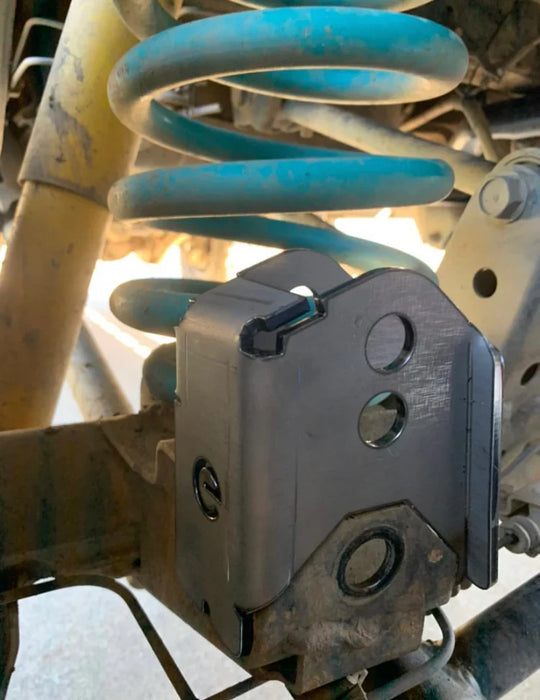

– Axle-side bracket: Multi-position lift bracket
– Material: 3/16" steel (all components)
– Weld-on design
– Finish: Raw steel

Fitment:
1990–1997 Toyota Land Cruiser 80 Series (FJ80/FZJ80) – axle type-specific kit required

What’s Included:
– (1) Frame-side drop bracket
– (1) Axle-side lift bracket
– (1) eimkeith logo decal

Notes:
Welding required for installation. Select correct version based on axle mount style (flat or V-shaped upper edge). Designed for use with 2–5" of rear lift. Bracket hole positions must be matched to specific lift heights:
– 2" (50mm): Use lower hole on axle bracket, stock frame-side hole
– 3" (75mm): Use upper hole on axle bracket, stock frame-side hole
– 4" (100mm): Use lower hole on axle bracket, new hole in frame bracket
– 5" (125mm): Use upper hole on axle bracket, new hole in frame bracket
